Products
Explore our wide range of fastening solutions and trust in our expertise to meet your specific requirements. With our commitment to excellence, we are your trusted partner in achieving reliable and secure fastening solutions. Our products undergo rigorous testing to meet or exceed industry standards, guaranteeing their performance and reliability in the most demanding environments.

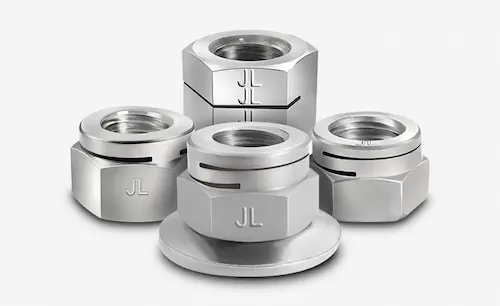

All Metal Locknuts
Our all-metal locknuts have no plastic inserts of any kind. They're effective under even the harshest conditions: extreme temperatures, corrosive environments, and high levels of vibration. Of special interest to many customers are our dual-slotted locknuts (ESL & ERM), which offer the highest performance possible with no bolt damage and no galling.
-

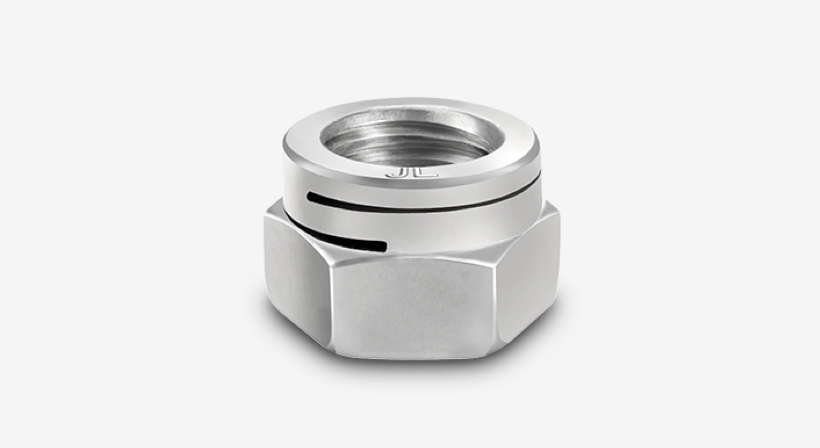

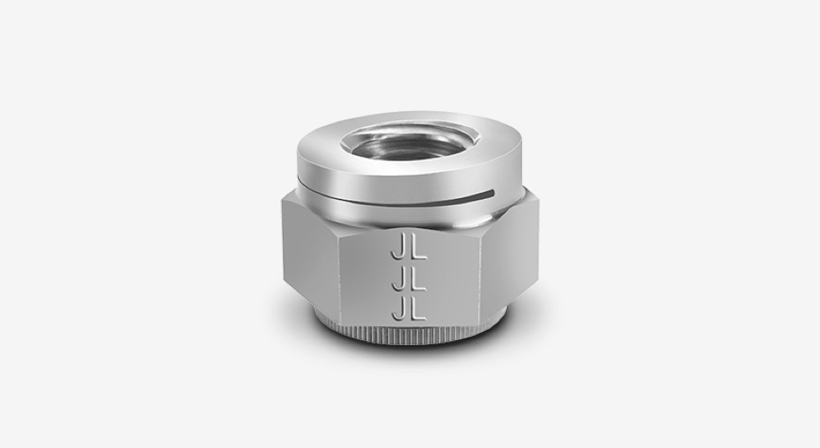

Dual-slotted, all-metal, self-locking hex nut. It’s has impressive characteristics: extremely reliable, consistent prevailing torque, and no galling. The dual-locking slots function independently of bolt tension. The ESL is a true single piece all metal design.
- Size Range
- M2-M60
- Material
-
Steel: Class 8 Steel • Class 10 Steel • Class 12 Steel
Stainless: A2-70 Stainless Steel • A4-80 Stainless Steel
-

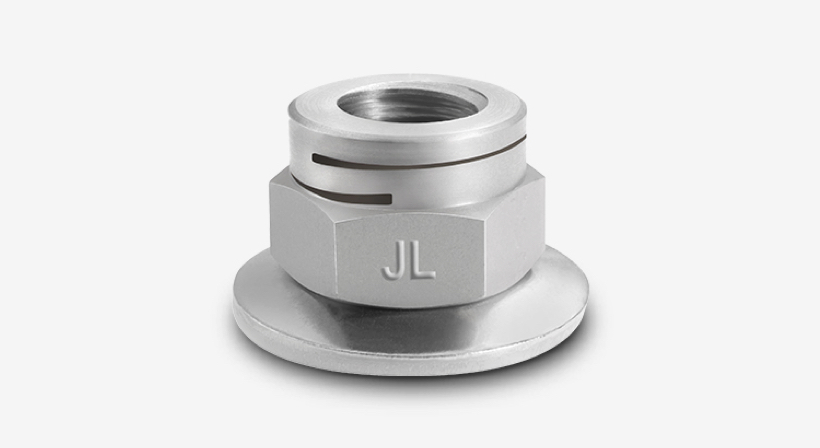

The one-piece ERM is a great time saver with its integrated disc spring washer. The result: quick installations and absolute tension maintained under dynamic loads. Ideal for imperfect bearing surfaces and electrical contacts.
- Size Range
- M4-M22
- Material
-
Steel: Class 8 Steel • Class 10 Steel • Class 12 Steel
Stainless: A2-70 Stainless Steel • A4-80 Stainless Steel
-
An all-metal locknut to ISO 7042. Available in metric class 8, 10, 12 and stainless steel A2-70 & A4-80.
- Size Range
- M5-M36
- Material
-
Steel: Class 8 Steel • Class 10 Steel • Class 12 Steel
Stainless: A2-70 Stainless Steel • A4-80 Stainless Steel
-
Single-slotted, extra low height, locking jam nut.
- Size Range
- M5-M48
- Material
-
Steel: Class 8 Steel* • Class 10 Steel* • Class 12 Steel*
Stainless: A2-70 Stainless Steel • A4-80 Stainless Steel
-

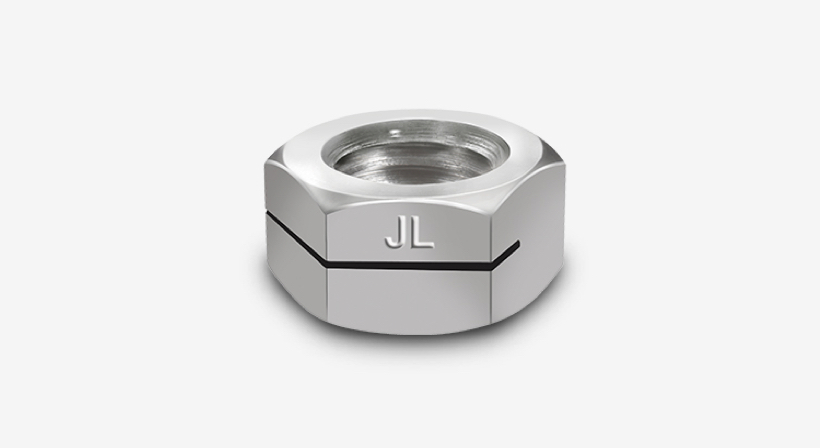

A reusable one-piece locking jam nut that’s able to withstand high temperatures. Great on terminal posts and electrical panels.
- Size Range
- M4-M48
- Material
-
Steel: Class 8 Steel • Class 10 Steel • Class 12 Steel
Stainless: A2-70 Stainless Steel • A4-80 Stainless Steel
-

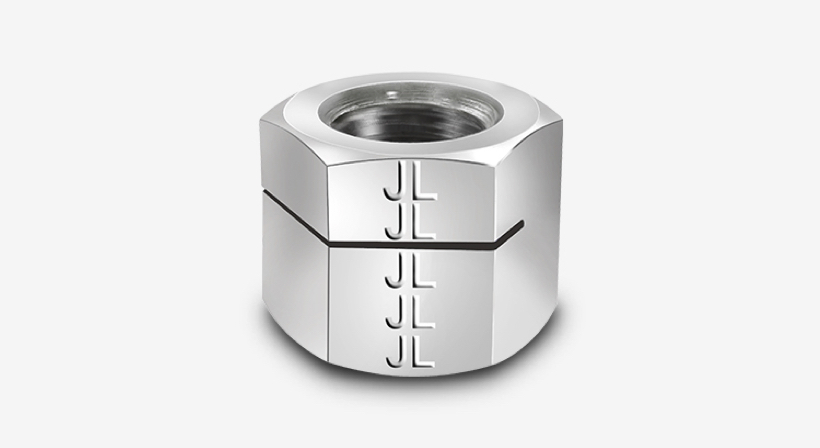

A reusable one-piece, full-height locknut ideal for high temperature areas.
- Size Range
- M3-M48
- Material
-
Steel: Class 8 Steel • Class 10 Steel • Class 12 Steel
Stainless: A2-70 Stainless Steel • A4-80 Stainless Steel
-

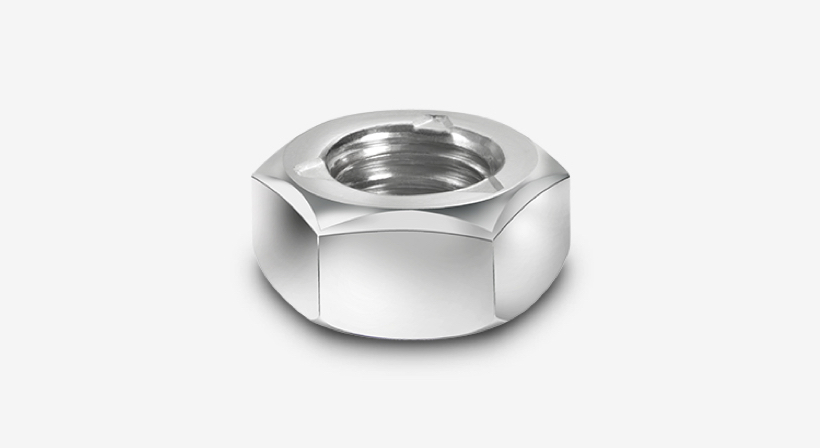

A standard deformed thread locking nut. It’s also known as a “top locking” type nut.
- Size Range
- M3-M36
- Material
-
Steel: Class 8 Steel • Class 10 Steel
Stainless: A2-70 Stainless Steel • A4-80 Stainless Steel
-

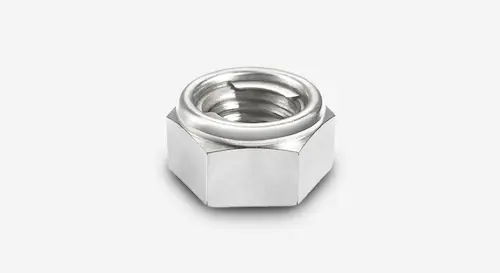

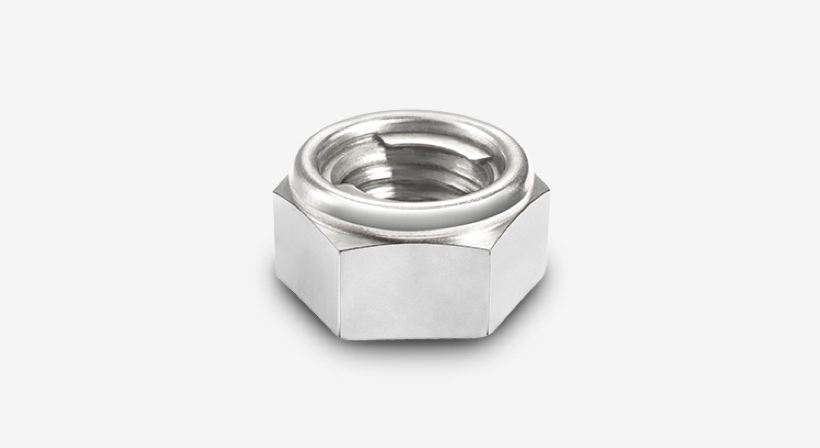

An all-metal locknut consisting of a hex nut with a crimped, deflected metal ring.
- Size Range
- M3-M20
- Material
-
Steel: Class 5 Steel • Class 6 Steel
Stainless: A2-70 Stainless Steel
-
- Size Range
- M5-M20
- Material
-
Steel: M5-M20: CLASS 8 STEEL
Stainless: M5-M12: A2-70 STAINLESS STEEL
-

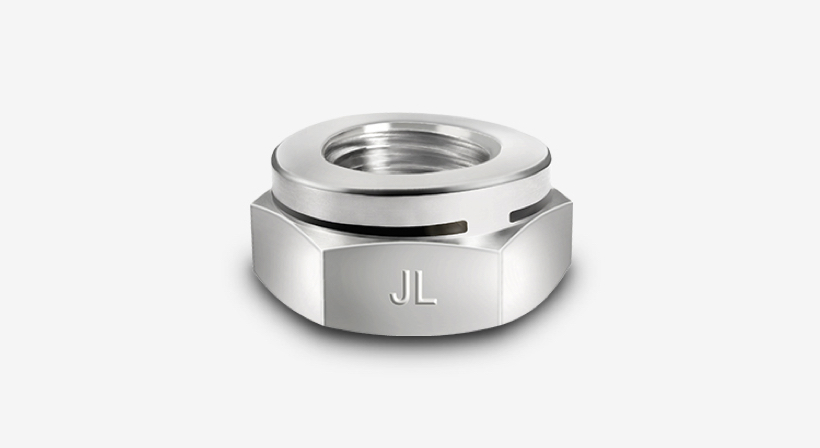

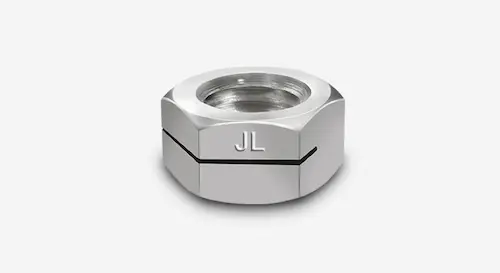

Low-profile industrial locknut similar to THU, but with a much lower height. Excellent option when designing bolted joints that require precisely controlled heights in confined spaces.
- Size Range
- M4-M45
- Material
-
Steel: Class 8 Steel* • Class 10 Steel* • Class 12 Steel*
Stainless: A2-70 Stainless Steel • A4-80 Stainless Steel
-

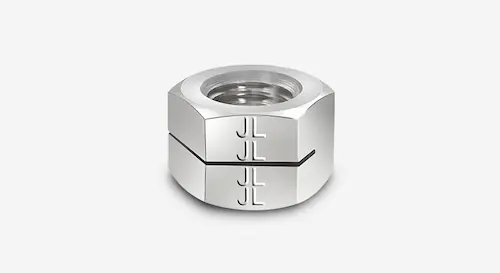

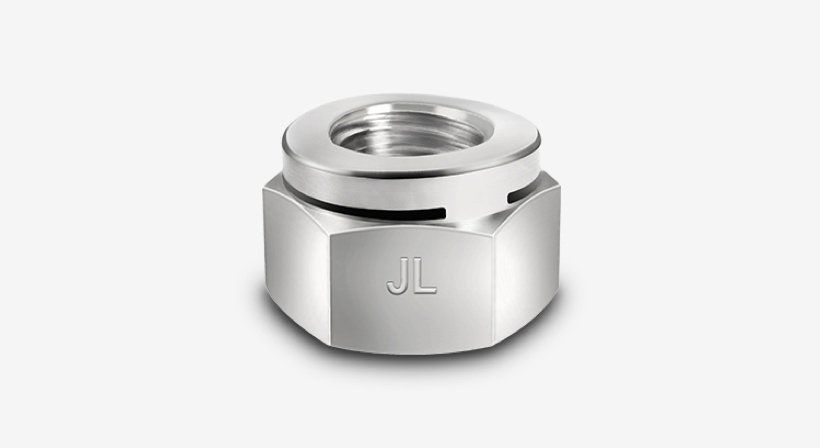

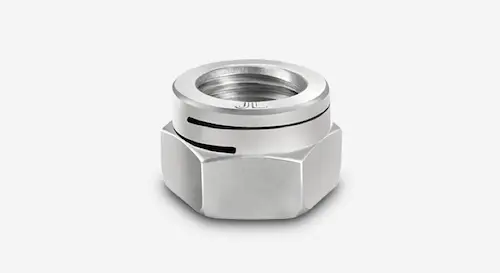

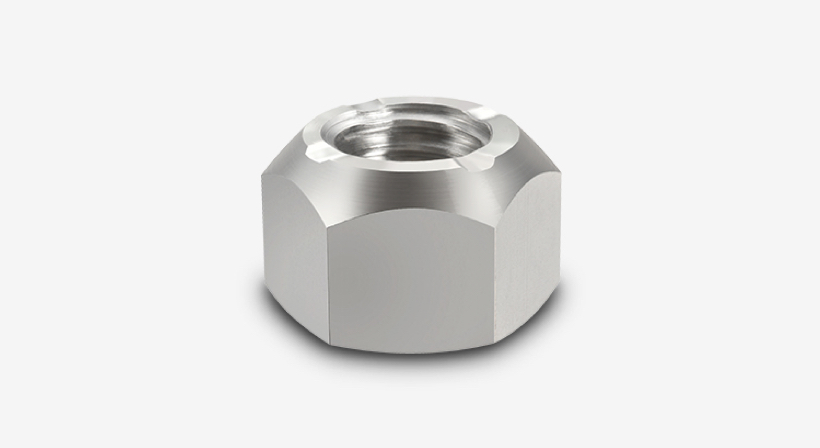

Full-height, heavy hex industrial version of our ESL nut. Locking slots are concentrated on a single plane. Superior resistance to vibration, corrosion, and temperature in a robust industrial design.
- Size Range
- M4-M45
- Material
-
Steel: Class 8 Steel • Class 10 Steel • Class 12 Steel
Stainless: A2-70 Stainless Steel • A4-80 Stainless Steel

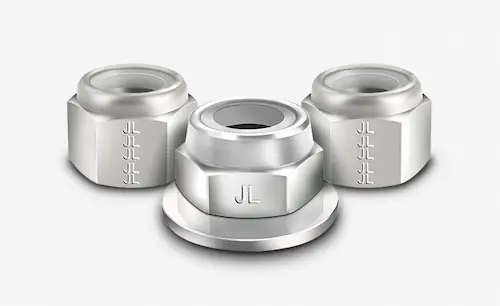

Nylon Insert Locknuts
Self-locking hex nuts use a nylon ring to generate prevailing torque. It's also available with a high temperature nylon ring. We offer a full line of metric nylon insert nuts as well as imperial NE, NU, NTU patterns in UNJC & UNJF thread form MIL-8879 or MIL-S-7742.
-

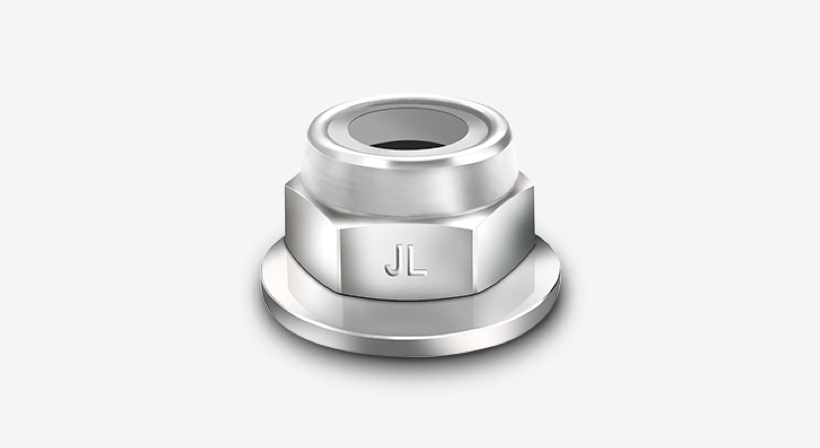

A nylon insert self-locking nut with a free spinning conical washer.
- Size Range
- M4-M16
-

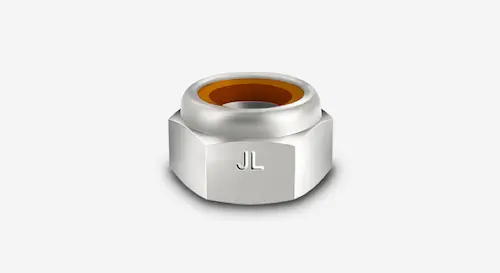

Low-height metric nylon insert locknut to ISO 10511.
- Size Range
- M3-M36
- Material
-
Steel: Class 8 Steel* • Class 10 Steel* <small>( * Markings Class 04, Class 05 and Class 06 respectively per ISO 898-2)</small>
Stainless: A2-70 Stainless Steel • A4-80 Stainless Steel
-

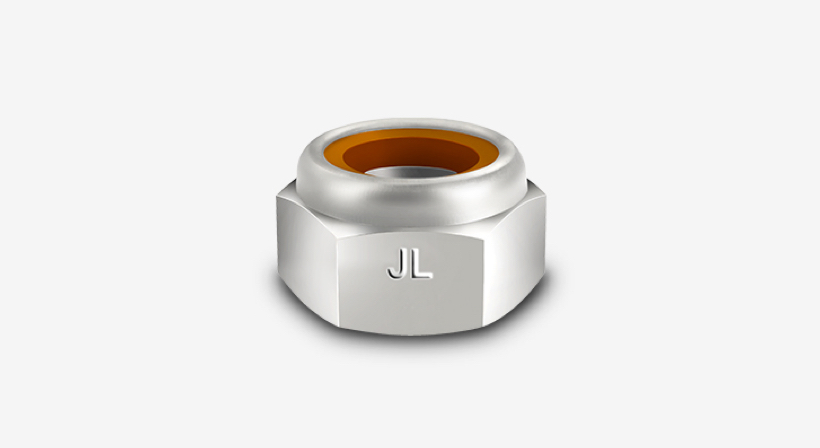

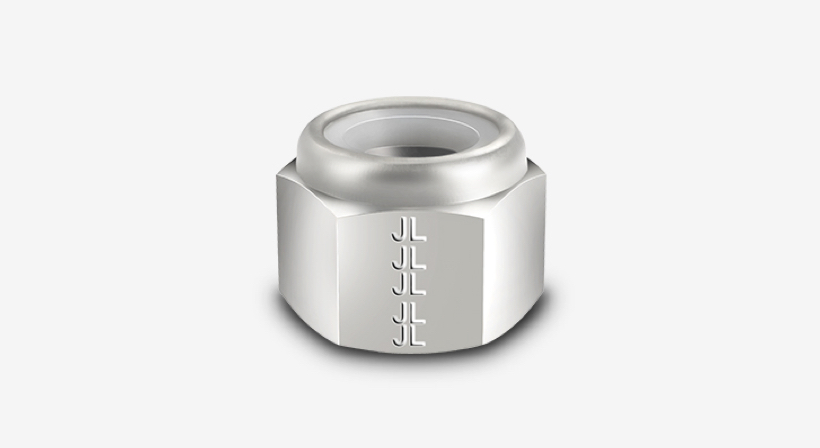

Nylon insert locknuts. They're made to all major metric and imperial standards (ISO 7040, IFI 100/107). Available in carbon steel, stainless steel, and exotics. UNJC & UNJF threads are available.
- Size Range
- M3-M36
- Material
-
Steel: Class 8 Steel • Class 10 Steel • Class 12 Steel
Stainless: A2-70 Stainless Steel • A4-80 Stainless Steel

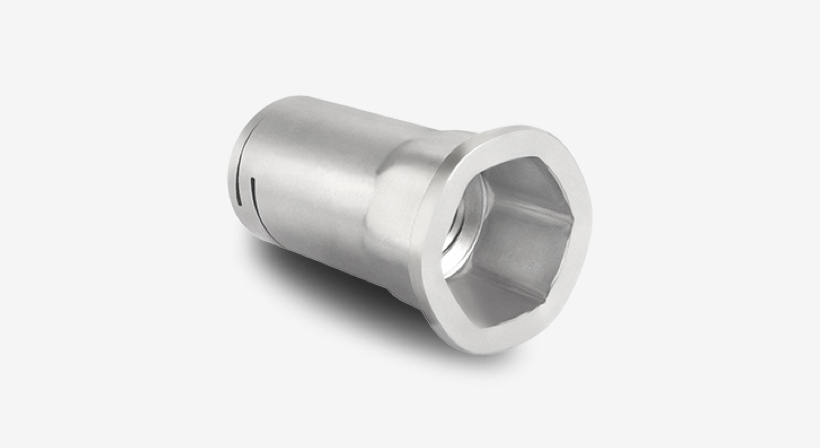

Clinch Nuts & Inserts

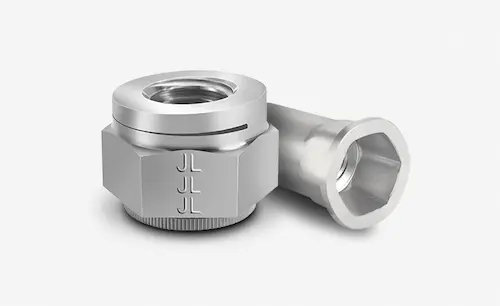

These are self-locking, slotted clinch nuts and inserts for sheet metal bolting applications that require high levels of locking ability and reusability.

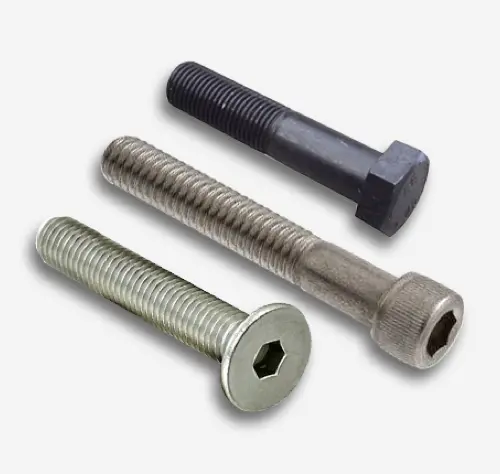

Bolt Products
Although we're best known for our locknuts, J.Lanfranco has become a reliable source for high-quality, specialty bolt products.
We focus primarily on:
- Specialty turned bolts with shoulders and drilled heads (metric and imperial)
- T-bolts (metric and imperial)
- Metric bolts ISO 4014, 4017
- Large diameter metric bolts
- Metric stainless steel A4-80 from stock
- Bolts requiring special zinc flake surface treatment (GEOMET, Magni, Delta Protekt)

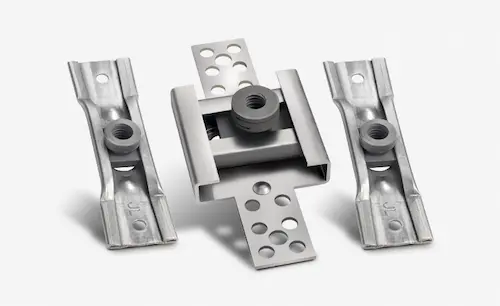

Modular Fixtures
This is one of our most exciting solutions. Modular fixtures, or gang channels, incorporate our vibration-proof locknuts into completely customizable channels. This streamlines the installation of panels, windows, exterior shells, and equipment. Each modular fixture can be made in any length, and with as many nuts and nut adjustability as required for your project. These are ideal for areas where tolerances in manufacturing affect integration of components – especially composite pieces.
Our modular fixtures are very specific to each project and can be customized to meet the needs of your application. They are highly adjustable, can be easily integrated with various components, and will streamline your manufacturing process. This all leads to a lower total cost of ownership. Very cool.
Because of this customizability, we will be introducing a handy online modular fixture creation tool in January 2018. This will allow you to design made-to-order components to meet your exact requirements. In the meantime, you can contact us directly to discuss your specific configurations.

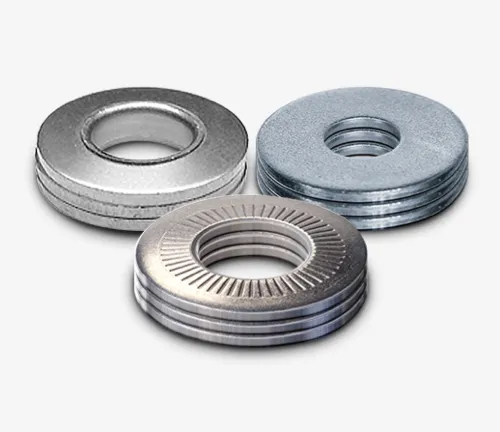

Washers
Washers are almost always used in conjunction with locknuts in safety-critical bolting.
J.Lanfranco stocks a wide range of different washers, available for shipment with any locknuts or on their own:
- Hardened washers to ASTM F436
- Serrated disc spring washers (metric and imperial)
- Hardened metric flat washers 200HV, 300HV, 400HV
- RCS & CSC disc spring washers NFE 25-511 & NFE 25-511A (steel and stainless steel)
- 3L & 4L Trep-type washers (steel and stainless steel)
- Washers to NFE 25514, 25518, ISO 7089, 7092 and 7093
- Convex and concave washer sets to DIS 6319 C/D
